Warn 12000 test fitting

click pictures for enlargement

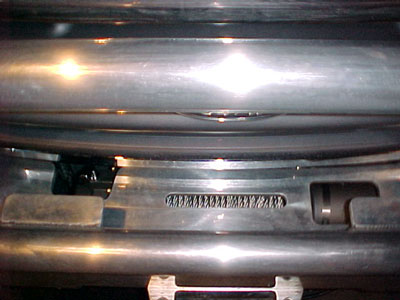

Front on view.
The tow hook and control box are not yet in place in this photo.

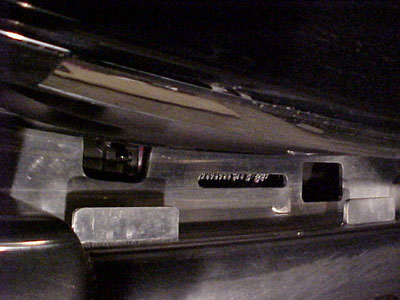

Top side views

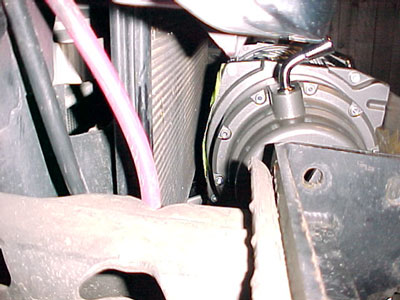

Spacing behind winch to radiator

(looking from right)

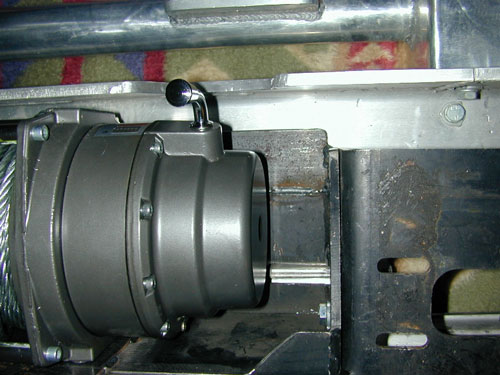

Backside view showing clearance

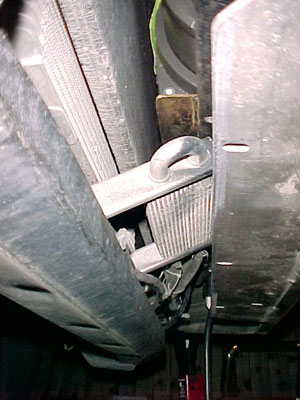

Underside view

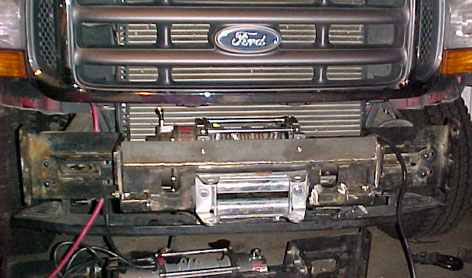

Front with mount and winch in place.

(no controls or hooks)

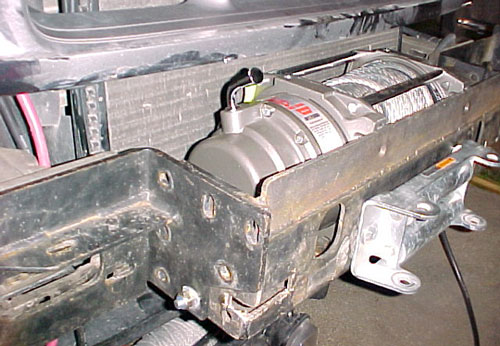

12K in place with plenty of room

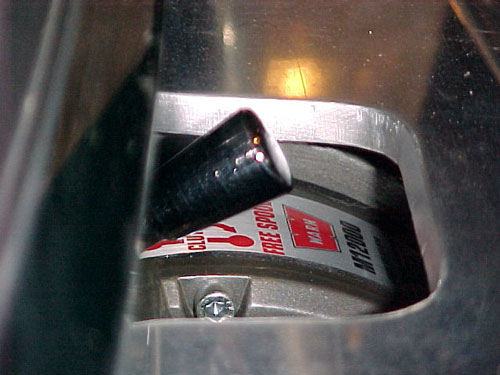

side view of winch box showing the single bolt in place and the cut-out notch (lower front of box)
Finished model will be one welded unit that will include the mounts and winch cradle. Face plate will have an angle iron reinforced top.
